車用IGBT模塊-A6
産品概述/General Description：
電(diàn)壓等級(jí) ：750V/1200V
電(diàn)流等級(jí)：400A/450A/550A/600A/660A/820A/950A
電路拓撲 ：三相全橋
微溝槽栅/場終止技術
低飽和壓降
低開關損耗
高可靠性
高RBSOA能力
應用領域/Applications：
新能源汽車

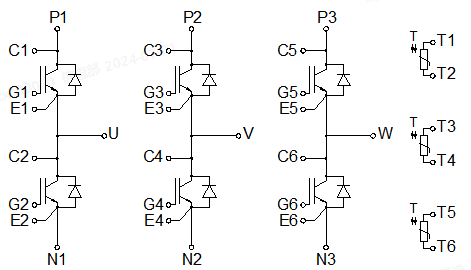

Circuit Diagram: Full Bridge | Specification | RedPower Part No. | Housing | Chip Technology | VCES(V) | Ic(nom)(A) | VCE(sat)(V) | Size No. |
|
| RG400F08A6M7R | A6 | MPT-FS | 750 V | 400 A | 1.35 | 1 |
| RG550F08A6M7R | A6 | MPT-FS | 750 V | 550 A | 1.35 | 1 | |
| RG600F08A6M7R | A6 | MPT-FS | 750 V | 600 A | 1.35 | 1 | |
|
| A6 | MPT-FS | 750 V | 600 A | 1.35 | 2 | |
| RG820F08A6M7R | A6 | MPT-FS | 750 V | 820 A | 1.35 | 1 | |
| RG820F08A6M7R_L | A6 | MPT-FS | 750 V | 820 A | 1.35 | 2 | |
| RG820F08A6M7R_E | A6 | MPT-FS | 750 V | 820 A | 1.35 | 3 | |
| RG950F08A6M7R | A6 | MPT-FS | 750 V | 950 A | 1.35 | 1 | |
| RG950F08A6M7R_E | A6 | MPT-FS | 750 V | 950 A | 1.35 | 3 | |
| RG950F08A6M7R_EX | A6 | MPT-FS | 750V | 950A | 1.35 | 1 | |
| RG450F12A6M7R Y_E | A6 | MPT-FS | 1200 V | 450 A | 1.35 | 1 | |
| RG600F12A6M7R | A6 | MPT-FS | 1200 V | 600 A | 1.35 | 1 | |
| RG600F12A6M7R_E | A6 | MPT-FS | 1200 V | 600 A | 1.35 | 3 |
